Die Cast Press is a worldwide machine supplier to the die cast , plastics and blow-molding industries. Our products include new die cast machines, remanufactured and rebuilt die cast machines, new “DCP” high-velocity shot ends and new and rebuilt trim presses. We also supply complete automated cell packages, parts and service for all makes of die cast, blow-molding and plastic machines.



WHERE QUALITY LIVES

​DCP emphasizes complete customer service and quality by addressing our customers’ immediate needs. We warranty and take pride in all of our work. We are proud of the reputation that we have been developing since 1963.

We constantly strive to utilize new technology in all of our manufacturing and remanufacturing processes. Our newer modern facility includes state-of-the-art equipment as well as a full service staff and engineers. Full in-house machinery services include CNC mills, CNC lathes, vertical and horizontal boring mills up to 50,000 lbs. capacity and turning up to 30′ long and 42” diameter.

​Die Cast Press is a proud member of the North American Die Casting Association.





Family Owned and Operated for Four Generations Since 1963

THE DIE CAST PRESS STORY

Die Cast Press was started in 1979 by Kasper Smidt III after his father who owned Die Cast Machinery (since 1963) retired from his company. DCP started manufacturing trim presses, rebuilding die casting machines and manufacturing parts for all makes of die cast machines.

1985 - DCP incorporated and started the manufacturing of new DCP shot ends, new hot and cold chamber die cast machines and custom manifolds to update our customers’ machines. A second manufacturing facility was built for this production.

2013 -  Expanded our facility to a 25,000 square ft. building including a 40′ high bay and an 80 ton crane to accommodate larger machines up to 3500 ton.

2018 - Larger equipment lathes up to 360” between centers and boring mills to handle larger platens up to 70,000 lbs.

2023 - A CNC Plasma cutting system and large press break.

2024 - New CNC turning center.

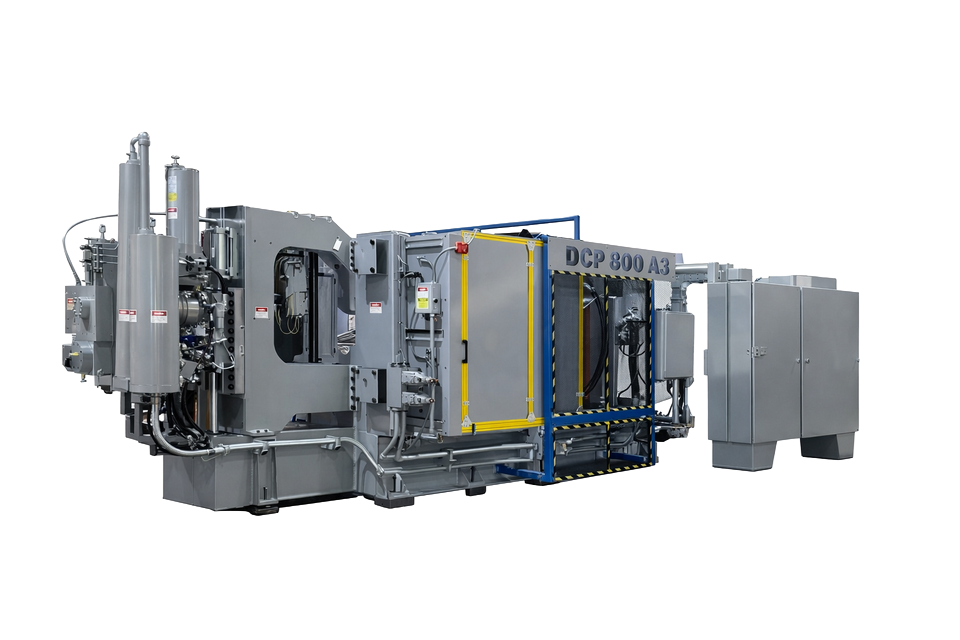

New “DCP” Cold and Hot Chamber
Die Cast Machines



Our new “DCP” Die Cast Machines are offered in Cold and hot chamber. Manufactured from USA high quality alloyed steel and materials, for long term endurance and up times by heat-treating, carburizing, chrome plating and back to back tighter machining tolerance allowance through the entire machine.

“DCP” machines are manufactured and assembled in America by quality tradesmen. Our machine technology will outperform and outlast any other manufacturer’s machine. DCP’s machine history of longevity has proven itself year after year. Our new machines are constructed with the world’s most reliable shot ends. They are superior in performance, longevity, repeatability and consistency, with variable controlled velocities. They have super response times, excellent transitions in all phases from 6–400 inches per second with consistency and repeatability. Super high density casting are produced for metal saving profits, all backed by 61 years of experience in engineering and manufacturing.

FEATURES

  • DCP High Velocity Closed Loop Meter Out Shot Ends
  • New Full Floating Tie Bars
  • Hydraulic Moving Platen Die Carrier Shoes with Monitoring Station
  • Self Contained Integrated Hydraulic Die Close Cylinder System
  • Alloy-casted Steel Links
  • Heat-treated and Process Coated Toggle Pins for Super Longevity
  • Available in American Standard or Metric
  • Offered in Hot and Cold chambers
  • 25 – 3000 ton and Higher Die Casting Capability

NEW TRIM PRESSES

The DCP fully powered 4-post hydraulic Trim Press came about from many years of experience rebuilding and re-manufacturing.

 It became evident that what the industry needed was a new, total regenerative, hydraulic powered, fully reliable trim press which could be easily maintained and met new high technology standards.

 These machines are designed with bolt together assemblies and optional bolt-on legs that can be removed for shipping and rigging ease.

 It also can be completely dismantled and crated for overseas shipping with easy reassembly by your maintenance staff.

TYPES OF PRESSES

  • 4-post hydraulic
  • 2-post hydraulic
  • Ceramic
  • Staking
  • Carbon Fiber
  • Deflashing – for the plastic industry C-frame
  • Thermo Forming Presses
  • Custom presses
S SERIES 4-POST VERTICAL TRIM PRESS

Standard Hydraulic Regenerative model

HE SERIES 4-POST VERTICAL TRIM PRESS

Hydraulic Regenerative model with dual casting ejection cylinders mounted in moving platen for auto ejection of casting. Includes Dual casting ejection cylinders mounted in moving plate for auto ejection of castings.

H.B SERIES 4-POST VERTICAL PRESS

Includes: Hydraulic bumper ejector plate with dual cylinders.


USED DIE CAST MACHINES AND  TRIM PRESS

USED TRIM PRESSES

Metal Mechanics 170 Ton Metal Mechanics Trim Press

USED DIE CAST MACHINES

300 Idra Hot Chamber 22.04"x22.04" 300 Ton Idra Hot Chamber Die Cast Machine
Idra - 28"x28" - 500 Ton Idra Remanufactured Die Cast Machine

REMANUFACTURE / REBUILD

Die Cast Press has perfected the rebuilding & remanufacturing of used machines to ensure that the most use possible is squeezed out of your equipment. Remanufacture and update your existing machine – entire machine and components cleaned and stripped bare.

What’s the Difference Between Rebuilding and Remanufacturing?

Rebuilding a used machine entails disassembling the existing machine, inspecting all its parts and replacing those items that have worn beyond repair. The machine when DCP has finished rebuilding it is restored to the original OEM manufacturing specifications. This is the most economical choice available.

Remanufacturing a used machine involves replacing entire systems, usually about 80 to 85% of the machine. Upon remanufacturing from DCP, the machine is “Equal to New” with new machine technology which exceeds current OEM specifications. This usually costs around 60 to 65% the price of a new machine and is still an inexpensive alternative to purchasing a new machine.


What TYPE OF MACHINES can be Remanufactured or Rebuilt ?

Die Cast Machines  ☆  Trim Presses  ☆  Plastic Injection Molding ☆ Blow Molding Machines ☆ Deflashing Presses ☆ Lead Battery Cable/Wheel Weight ☆ Squeeze Casting Machines ☆ Casting Machines ☆ Shot Ends ☆ and more…

Rebuilding & Remanufacturing of all Makes and Models


American ☆ B&T ☆ Buhler-Prince ☆ Castmaster ☆ National Harvill ☆ HPM ☆ Kux ☆ Lester ☆Kard ☆
 KR Wilson ☆ Frech ☆ Birch ☆ Wotan ☆ UBE ☆ Toshiba ☆ Ital-Presse ☆ and many more…

NEW SHOT ENDS FROM DIE CAST PRESS

New DCP Hot Chamber Shot Mounted on a 450 Ton Prince Machine
  • New A-frame installed or remanufacture existing A-frame, complete re-machining and qualification.
  • Proportional shot control Zinc Shot End
  • Hydraulic draw cylinder option available
  • Fixed European style a-frames also available, Heavy duty shot cylinder with bell flange mounting
  • Combination shot cylinder on shot manifold
  • New design cartridge valving inserted type
  • Manual flow control, insert type
  • Combination return cylinder head, piston accumulator mountings and valving
  • Piston accumulator gas bottle driven
  • Slow advance speed control
  • Shot return speed control cartridge type with flow control
  • Automatic accumulator discharge
  • Throttle valve for meter out shot control
  • Transducer and gauge ports provided
  • Limit switches operating rod provided can be changed to encoder type shot control
  • Water cooled cylinder head
  • Water cooled sensor block
  • Shot control and monitoring systems also available
DCP Cold Chamber Shot End Mounted on a 836 Ton Prince Machine
  • New C-Frame installed or existing remanufactured
  • Cylinder to be of bell mounting
  • Combination shot cylinder on shot manifold
  • Din cartridge valving (cartridge insert type) proportional valve for meter out shot control
  • Combination rear cylinder head. Piston accumulator mountings and Aluminum Shot End valving
  • Piston accumulator gas bottle driven.
  • Approach speed control.
  • Transducer and gauge ports provided
  • Limit switches operating rod provided can be changed to encoder type shot control
  • Multiplier, integrated, piston accumulator driven with manifold available in 2:1, 3:1 or 4:3
  • Pressure control and integrated valving inserted in manifold
  • Base extension to support C-Frame
  • Throttle valve provided for meter out shot control
Shot End Features

“DCP” Shot Ends are the world’s most reliable shot ends. They are superior in performance, repeatability and consistency, with variable controlled velocities. They have super response times, excellent transitions in all phases from 6–450 inches per second with consistency and repeatability. We offer diagonal ramping capabilities through acceleration speed changes (higher velocity is available for magnesium) and unsurpassed consistence in low impact phase.

Upgrade your existing machine with a New DCP shot End: Retrofits available for 100 through 3,000 ton machines – Hot or cold chamber shot ends. Intensifier pressure control available on all new DCP shot ends. Die Cast Press Hot and Cold chamber Shot Ends are easily installed by our personnel or yours and are retrofitted to your existing machine for better performance, faster response times and new technology.

 ☆  READY TO INSTALL

These retrofit shot ends are ready to install on most die cast machines.

☆  CONVERSIONS

We can convert your platens and mountings.

☆  MOUNTINGS

We can mount to your platens.

☆  TECH HELP

DCP Technicians are available.



RETRO-FIT MANIFOLDS

Update your machine with a New HIGH TECH Manifold Package!

Die Cast Press has been in the business of providing retrofit replacement manifolds for decades and has engineered solutions for all makes and models of all types of machines. Using only the highest grades of materials, these manifolds will perform better, increase production and are easily maintained. All manifolds are easily installed in-house. DCP specializes in manufacturing and engineering custom hydraulic systems for all industries including die casting, ceramics, injection molding and blow molding. Die Cast Press offers full CAD hydraulic and assembly drawings for each manifold. Although completely customized manifolds are available, there are generally three types of manifolds we offer.

Shot Control

Regulates oil flow for faster velocities and more consistent shots.

  • Din Cartridge Bores
  • Manifold mount valving
  • Compatible with all shot control systems
  • Steel manifold in design for longer life reduces part washout
  • Replacement of Olmstead type spool valves
  • Replaces
  • Binary shot systems:
    • B&T spool type shot systems
    • Bi-constance shot systems
    • Servo Shot Plus systems

Key benefits:
  • Fast shot response times.
  • Higher oil flows for faster shot velocities
  • Direct replacement of existing manifold
  • Inexpensive Solution for replacement of binary valves.
  • Designed for Easy Troubleshooting
  • More consistent shot profiles
  • Standard off-the-shelf-hydraulic valves for easy upgrades and replacement parts.
Pump Pressure Control

  • Control loading & unloading of the pumps for the main system pressure.
  • Vickers cartridge relief valve for pressure control on die lock.
  • Low pressure, high volume GPM cartridge solenoid relief valve for die close.
  • Shot accumulator charge and shot return controlled by a 2nd cartridge relief. These two units control pressure, volume and GPM for die close and shot circuit.
  • Manifold to be drilled for high/low circuit for die close.
  • Additional pressure ports can be drilled if needed for cores or hydraulic ejector. (Please specify at time of order.)
  • Optional high pressure Vickers 10 micron filter manifold.
  • Installable on any make of machine to standardize
Key benefits:
  • ​Compact in design – takes up 75% less space on most machines
  • Higher oil flows for faster machine rates
  • Din cartridge tolerates dirt better for longer life and increased up time
  • Uses off-the-shelf Vickers hydraulics for easy upgrades and replacement parts
  • Saves Energy with an auto pump unload feature which shuts off when machine is at rest
  • There is also less heat generation.
  • Extends pump life due to decreased pumping time
  • Designed for Easy Troubleshooting
Die Open & Close

Regulate oil flow to your clamp and keep your upper half running smoother longer

  • Die close cartridge valving can be controlled manually or adjusted electronically through a PLC.
  • Custom solutions are available for all makes and types of machines, some with direct replacement option.
  • 25mm to 100mm cartridge manifolds available.
  • Die open/close manifold to replace existing spool type valves like the Olmstead spool type four-way valve, can be replaced within a day.
Key Benefits:
  • ​Double your GPM and weekly production rates with a new manifold designed for a regenerative circuit.
  • Handle higher pressures for longer periods of time with superior 1025-1030 steel.
  • Minimize downtime due to oil leaks with O-ring flanges which create leak free conditions. Also the outdated telescopic tube lines are replaced with direct hose systems which won’t crack. You also won’t have to deal with the old spool type valving any more which makes for easy valve replacements.
  • Designed for Easy Troubleshooting.
  • Enjoy simple installation and maintenance with hydraulic drawings and installation instructions which are provided.
Other Types

  • Regenerative Hydraulic Trim Press Manifolds.
  • Core Pull Manifolds, single or double.
  • Hydraulic ejector manifolds.
  • Compensator core manifolds.
  • Other custom die close replacement manifolds as per customer specifications.

Upper Half and Linkage Available

If you’re looking for a new linkage, we can manufacture brand new parts for your machine. Let us know your specifications and we’ll provide you with pricing and time to deliver.

New linkage for 1600 Ton B&T Die Cast Machine

Rebuild linkage 600 ton HPM

Rebuild links for 600 ton HPM

New Links & upper half rebuild for 700 B&T

Linkage and Upper Half Rebuilding

Rebuild your existing upper halfs or linkage. Rebuilding is available for most makes and models ​

  • American
  • B&T
  • Buhler-Prince
  • Castmaster
  • National
  • Harvill
  • HPM
  • Kux
  • Lester
  • Kard
  • KR Wilson
  • Frech
  • Birch
  • Wotan
  • UBE
  • Toshiba
  • Ital-Presse
  • and many more…

REPLACEMENT PARTS

Die Cast Press specializes in replacement parts that service not only the die casting industries, but also:

⚙ Plastics  ⚙  Heavy Industrial  ⚙  Food  ⚙  Medical ⚙  Trucking
⚙ Mining  ⚙ Analytical ⚙ Farming ⚙ Waste Management

REPLACEMENT PARTS AND PACKAGES

Below is a sample listing of parts that we carry. If you don’t see what you’re looking for, GIVE US A CALL AT (269) 657-6060, or click here and we’ll get a price and delivery date for you.

⚙ C-frames
⚙ Crossheads
⚙ Custom Manifolds
⚙ Die close cylinders
⚙ Die height nuts
⚙ Electrical components
⚙ Electric pumps
⚙ High Pressure and suction filters
⚙ Hydraulic Hoses and Fittings
⚙ Hydraulic Lubrication systems and parts
⚙ Hydraulic motors
⚙ Hydraulic oil filters
⚙ Hydraulic power units
⚙ Hydraulic pumps
⚙ Hydraulic valves
⚙ Light curtains
⚙ Linkage sets
⚙ New hydraulic cylinders (Vickers, hydroline, Parker, Schaeffer, etc)

⚙ New Platens
⚙ New safety hoods and doors
⚙ New Tobul Piston Accumulators
⚙ Pneumatic Air Valves
⚙ Platen carrier rails
⚙ Platen carries shoes
⚙ Pins and bushings
⚙ Poly seals and Perma Seal Piston Rings
⚙ Proportional valves (Parker and Olmsted)
⚙ Safety ratchet bars and pullouts
⚙ Shot control and monitoring systems
⚙ Shot cylinders and shot cylinder tubes
⚙ Shot ends
⚙ Tie bar nuts
⚙ Tie bar pullers
⚙ Tie bars
⚙ Water and air cooled heat exchangers
